BreathLogix Breathalyzer

$ 3,120.00 – $ 3,720.00

Unmanned Breath Alcohol Testing

Automatically screen employees for alcohol before they start work. Provides pass/fail and BrAC results. Administers a self test without tying up valuable testing resources. Integrate BreathLogix with other security devices. Screen employees, contractors or visitors as part of access security protocols. Great for 24/7 sobriety programs. WiFi, Bluetooth, and USB connectivity enabled.

Call to request a quote or schedule a product demo.

SKU: N/A Categories: ,
Description

The BreathLogix Breathalyzer

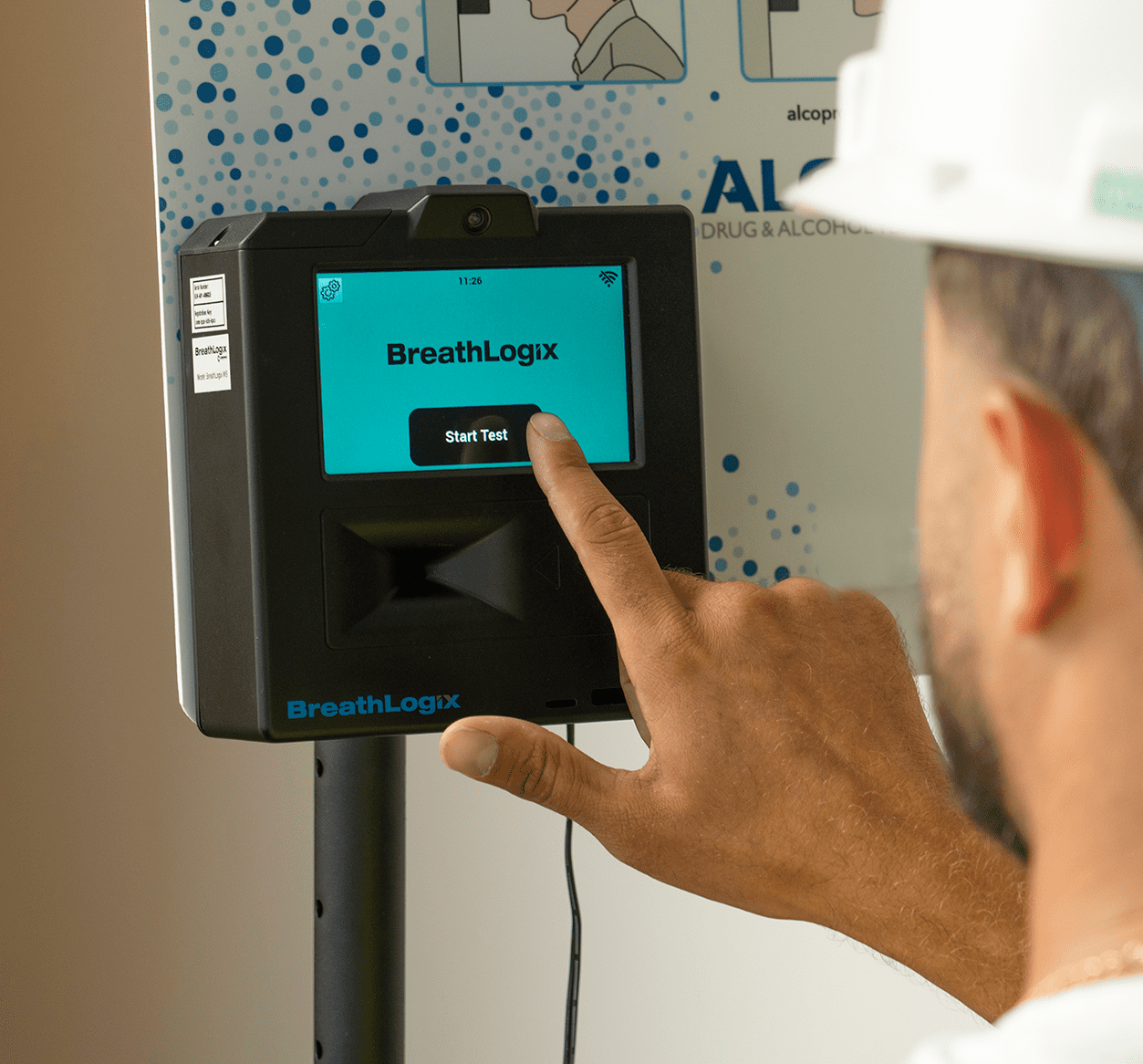

The BreathLogix breathalyzer is a compact wall-mounted breath alcohol tester that quickly screens individuals for alcohol. The BreathLogix breathalyzer is designed for unmanned rapid testing of large or small people groups, delivering a pass/fail result and BrAC alcohol level in seconds. The intuitive screen and voice prompts guide the individual through the self-testing process. BreathLogix is approved by the National Highway Traffic Safety Administration and appears on the conforming products list as an DOT alcohol screening device.

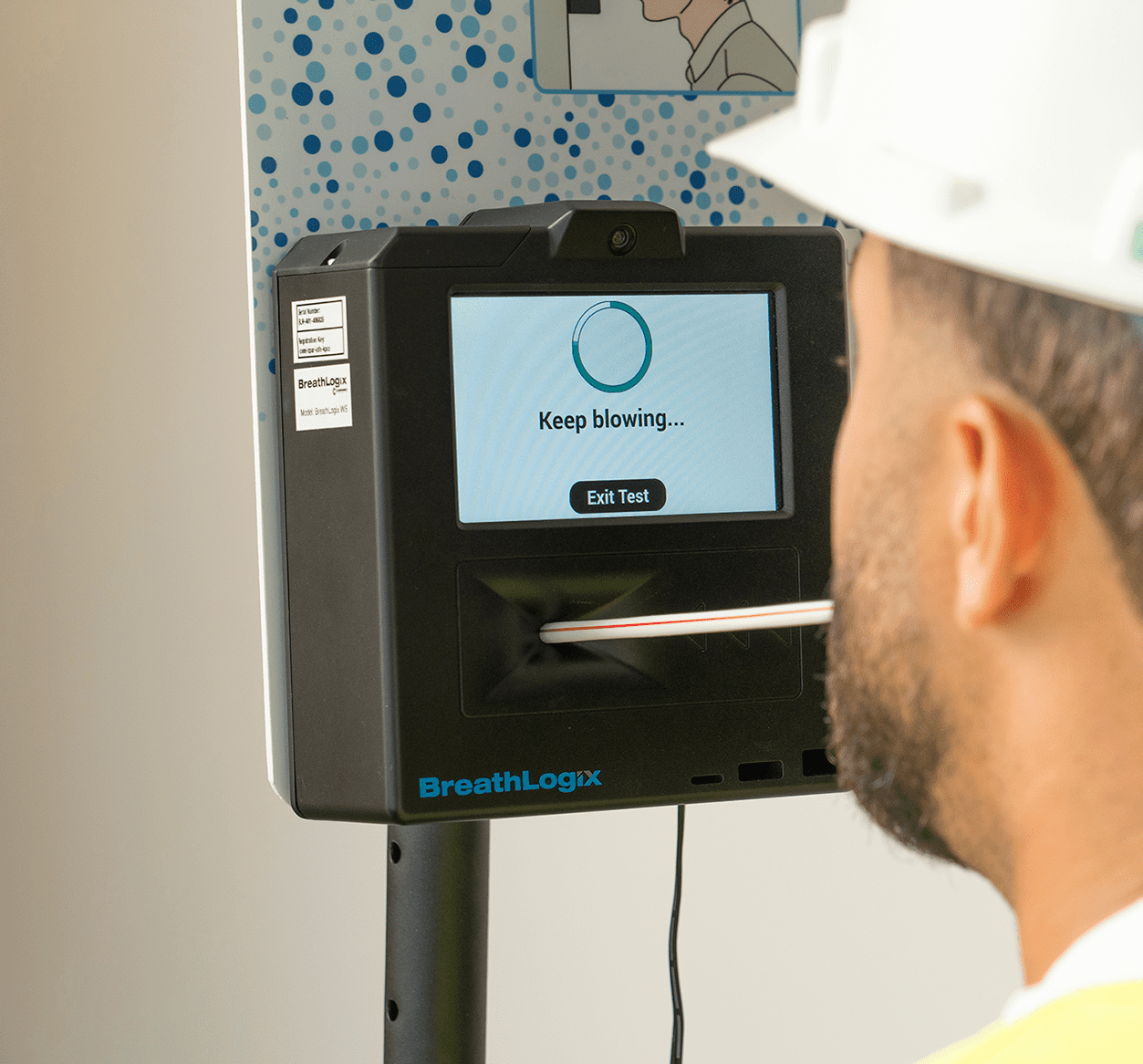

This automated alcohol screening system can be customized for your specific use. A breath sample is delivered either by blowing air through a straw, or in contactless mode where the individual blows their breath into the breath inlet port. The device’s camera captures the individual’s image as they provide a breath sample and ties the employee’s image to a test result. Each test record includes the date and time of the test, individual’s ID number, test results and photos, providing a complete chain of custody. Print test records using the optional printer or store results in the BreathLogix Connect cloud database.

Data Management

BreathLogix breathalyzers come with a USB port for quick access to testing data. Testing data can be stored in the device’s internal memory (64 GB memory), and transferred to either a USB device or through Wi-Fi to a cloud-based data management system. Test result data can be accessed through a remote management dashboard with AWS (Amazon Web Service). Testing data can be backed up daily, weekly or monthly.

BreathLogix is Bluetooth enabled, allowing for integrations with an external thermal printer or other devices. With the optional Integration Hub you can integrate BreathLogix with other external security devices. An optional Biometric Scanner uses facial recognition technology to identify the individual before initiating the test.

Workplace Testing

The BreathLogix breath tester is ideal for non-regulated workplace testing programs. It is designed to administer an automatic self-test without the need for tying up valuable testing resources. The camera captures the employee’s image, tying the test results to the employee. Employers can automatically screen employees, contractors or visitors as part of security and access control protocols, or use BreathLogix to screen employees before they start work, improving worker safety.

24/7 Sobriety Programs

The BreathLogix breathalyzer is ideal for 24/7 sobriety and probations programs, because it can administer a self-test, which saves on time and resource allocation. The subject keys in a unique number, such as a parole or probations number, to begin the test. The camera captures images of the subject as they submit a breath sample.

Specs

BreathLogix Specifications

CertificationsN.H.T.S.A approved Alcohol Screening Device (ASD)
Alcohol SensorFuel cell with high sensitivity and wide detection range
Detection Range0 to 0.30 g/210 L BrAc
Accuracy+/- .005 g/210 L for 0 to .05 g/210 L BrAC
Response Time20 seconds
Recovery Time10 seconds for negatives, under 60 seconds for positives
Display5″ capacitive touch screen
Operating Temp32 – 113 degrees F (0 – 45 C)
Power12 volt DC power adapter
Size6.3″ x 7″ x 2.7″ (16 x 17.8 x 6.8 cm)
Weight2.2 lbs
MaterialABS plastic
Standard Equipment

Every BreathLogix comes standard with:

  • 5″ touchscreen display
  • Built-in camera
  • Built-in speaker
  • Wi-Fi and Bluetooth enabled
  • Internal memory (64 GB)
  • USB port
  • Pre-calibrated fuel cell cartridge

BreathLogix Essentials Tier

  • SMS credits for 100 email/text notifications for non-negative results (additional 100 SMS credits can be purchased)

BreathLogix Premium Tier

  • 250 SMS email/text notifications for non-negative results (additional 250 SMS credits can be purchased)
  • BreathLogix Connect cloud data management annual subscription (store unlimited results $600 annually)

Optional BreathLogix Features:

  • Thermal printer (prints results in triplicate)
  • Integration hub (allows for integration into other external security devices)
  • Hikvision facial recognition
  • BreathLogix stand and adapter plate
Instructions for Use

BreathLogix use instructions

Features
  • Audible and visual prompts administer a self-test (unmanned testing)
  • Camera captures the individual’s image during the test, creating a chain of custody
  • Displays pass/fail results and a 3 digit BrAC result
  • Email and text notifications to one or more program administrators of failed tests (included in Premium Tier. Essentials Tier includes 100 SMS credits.)
  • Internal memory stores test results which can be transferred to a USB drive
  • Results can be stored in a cloud database (available with Premium Tier only. $600 annual subscription fee.)
  • Optional integration hub allows for BreathLogix integration with other security devices
  • Optional Hikvision facial recognition as a part of identification and chain of custody
  • Optional thermal printer allows you to print test results (testing time/date stamp, results)
  • Optional stand and plate or mount BreathLogix to a wall
Product Library

BreathLogix Product Specifications
